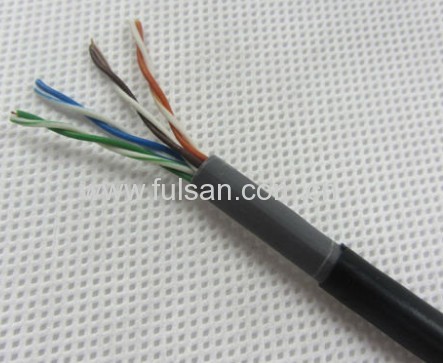

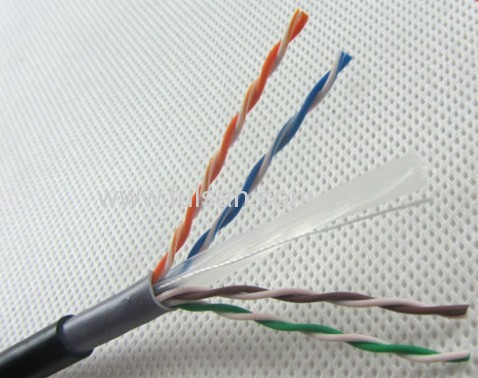

LAN CABLE CAT6 UTP 4 pair

LAN CABLE CAT6 UTP 4 pair

Connector: RJ45, shield
Cable Spec: Cat 5e/6 Cable
Meet TIA/EIA-568-A
Pin Out: 568A-568A
568B-568B
568A-568B

Quantity:
  • Lan Cable (cat6)
  • Fulsan
  • 854442
  • 100m, 300m, 305m, 500m

LAN CABLE CAT6 UTP 4 pair



1.new material of PE/PVC
2.UL,CE,ROHS,ISO9001 SGS comply

outdoor utp cat5e network cable with good warterproof jacket
Product Description:
Reference standard: UL,ISO9001:2000,CE
Material of conductor:ccag/cca/cca+ccs/A copper(99.99%copper)/B copper(85% copper)

diameter:23awg/24awg/26awg/28awg
RoHS complied PVC, PE or LSOH jacket
Complies to TIA/EIA-568B&ISO/IEC 11801

Application:
Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring

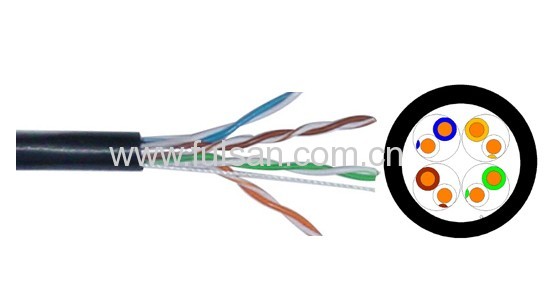

Cable Construction:
Conductor Dimension: 0.50mm

Core Dimension: 0.91mm 0.92mm
No. Of Pairs:  4
Nom. OD: 5.3mm 14.0mm 13.0mm
Type of Jacket: PVC/PE PVC/PE PVC/PE

Electrical Characteristics :




Electrical Charateristics UTP CAT5E FTP CAT5E
Impedance(Ohm) 100±15 100±15
velocity of Propagation 70 70
Minimum Return Loss(dB) ≥23 ≥23
Frequency Attenuation(dB/100m) NEXT PS-NEXT ELFEXT PA-ELFEXT
1 MHz 2.0 62.3 65.3 63.8 60.8
4 MHz 4.1 53.3 56.3 51.7 48.7
10 MHz 6.5 47.3 50.3 43.8 40.8
16 MHz 8.2 44.3 47.3 39.7 36.7
20 MHz 9.3 42.8 45.8 37.7 34.7
31.25 MHz 11.7 39.9 42.9 33.9 30.9
65.5 MHz 17.0 35.4 38.4 27.8 24.8
100 MHz 22.0 32.3 35.3 23.8 20.8





Conductor

 Material

 Solid Bare Copper

 Size

24 AWG

 Construction

0.51 ± 0.02 mm



Insulation

Material

 PE

Thickness

Average: 0.414 mm Min. at any point: 0.364mm

Material

1.387 ± 0.05 mm

 Colors

Blue/White-Blue , Orange/White-Orange

Green/White-Green , Brown/White-Brown

Elongation

Min. 150 %

 Tensile strength

Min. 0.51 Kg/mm²



Shield

 Al-Mylar Type

 Aluminum foil on outside

 Mylar Type



Braid

Material

 Tinned Copper

 Coverage

Min. 40% (Nom. 48 %)



Sheath

 Material

PVC

LSZH

 Thickness

Average: 0.54 mm

Average: 0.54 mm

Min. at any point: 0.40 mm

Min. at any point: 0.40 mm

 Diameter

7.2 ± 0.3 mm

7.2 ± 0.3 mm

 Color

 Assorted upon request

 Assorted upon request

 Elongation

Min. 100%

Min. 125%

 Tensile strength

Min. 1.407 Kg/mm²

Min. 0.917 Kg/mm²

168100Aging at 100 for 168Hrs

:50%

Min.elongation retention:50%

:75%

Min.tensile strength retention:75%

Min.elongation

retention:75%



Min.tensile

strength retention:70%
