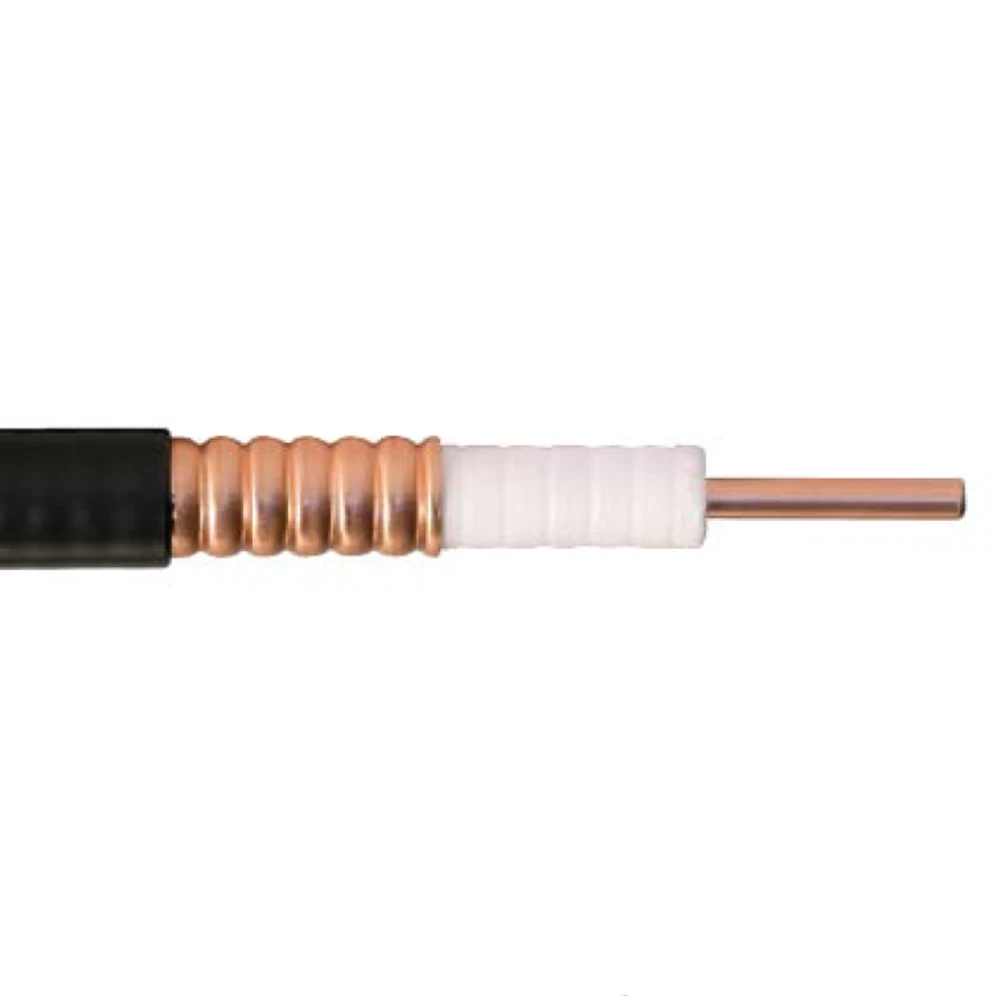

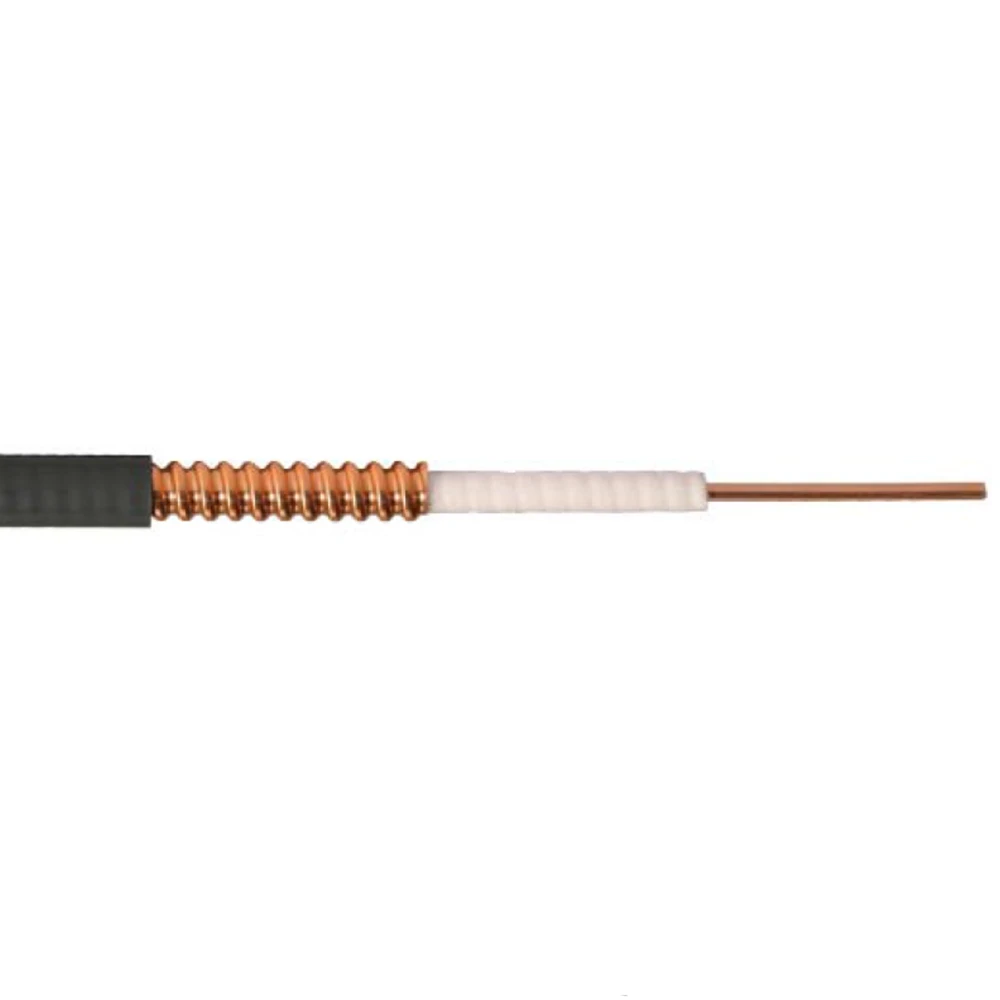

LDF4-50A corrugated 1/2'' 1/4'' 7/8'' jumper coaxial cable

Availability:
Quantity:
Inquire Add to Basket

  • COA-017


Product Description
Construction
Diameter
Inner Conductor
4.8mm
Dielectric
12.1mm
Outer Conductor
13.8mm
Jacket
15.9mm
Electrical Data
Impedance
Ohm
50
Typ. attenuation @1 GHz
dB/100m
7.29
Typ. attenuation @2 GHz
dB/100m
10.62
Typ. attenuation @2.2 GHz
dB/100m
11.20
Typ. attenuation @3 GHz
dB/100m
13.31
Cable Type
HUBER-SHUNER P/N
Andrew P/N
Eupen P/N
1/4''S
Sucofeed 1/4'' high-flex
FSJ1-50B
EC1-50HF
1/2''S
Sucofeed 1/2'' high-flex
FSJ4-50B
EC4-50HF
1/2''
Sucofeed 1/2'' annular
LDF4-50A
EC4-50
7/8''
Sucofeed 7/8'' annular
LDF5-50A
EC5-50

Match Connector Types

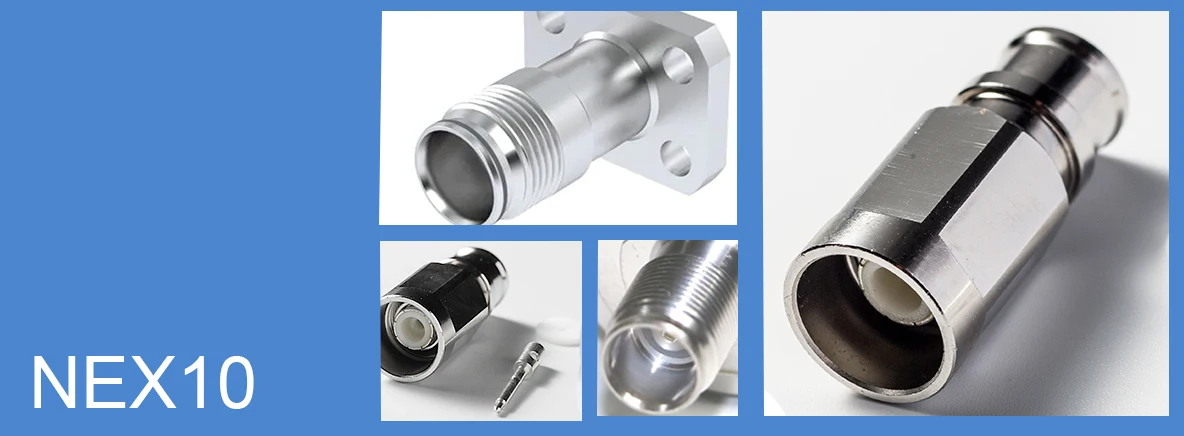

NEX10

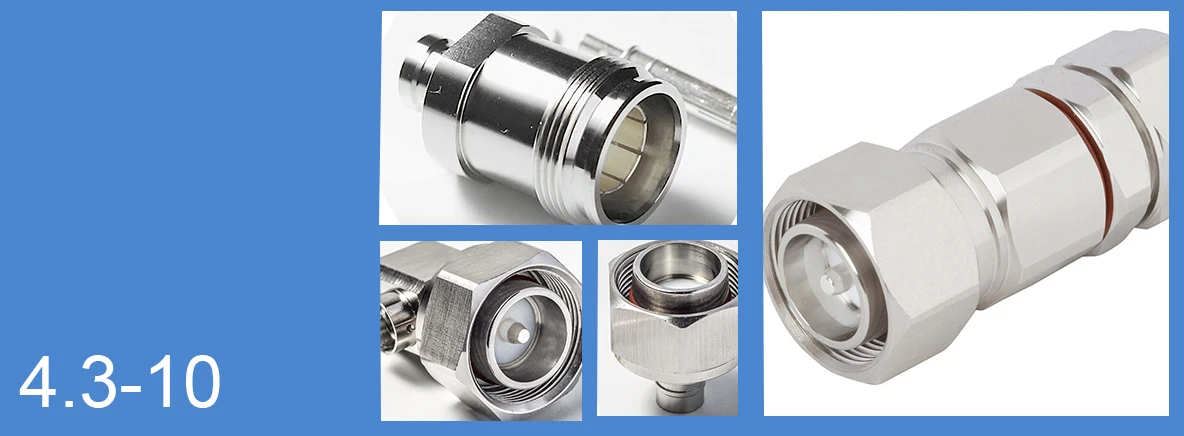

4.3-10
DIN
N
Passive Intermodulation
-166dBc @2*43dBm
-166dBc @2*43dBm
-165dBc @2*43dBm
-155dBc @2*43dBm
Power Handling
100W(2GHz)
500W(2GHz)
1000W(2GHz)
300W(2GHz)
Frequency Range
20GHz
6GHz
6GHz
6GHz
Return Loss
36dB@4GHz
34dB@6GHz
36dB@4GHz
32dB@6GHz
36dB@4GHz
32dB@6GHz
36dB@4GHz
32dB@6GHz
Coupling Mechanisms
Screw
Push Pull
Hand Screw
Screw
Push Pull
Hand Screw
Screw
Screw
Packaging Density
12.7mm
25.4mm
32mm
25.4mm
