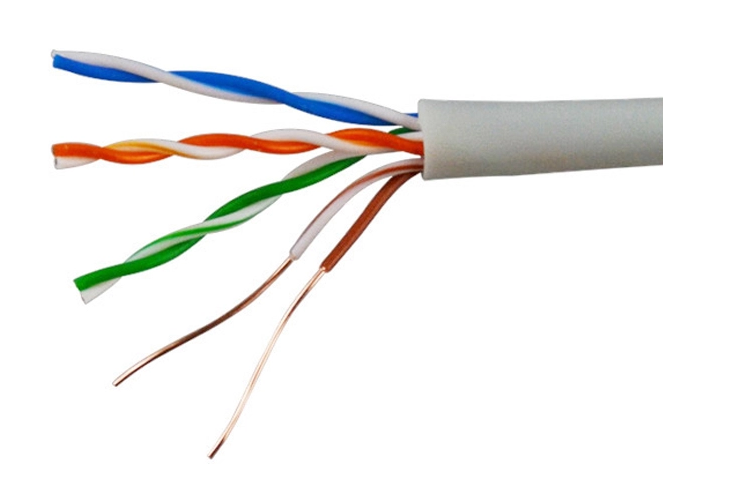

Networking Full Copper Ftp Cat5e Lan Cable

Computer use RJ45 connector PVC jacket copper wire cat 5e 6 cat5e cat6 UTP FTP indoor network cable patch cord

Connector: RJ45, shield
Cable Spec: Cat 5e/6 Cable
Meet TIA/EIA-568-A
Pin Out: 568A-568A
568B-568B
568A-568B

Availability:

Quantity:


Inquire Add to Basket

Model:
Lan Cable (cat5e)
Brand:
Fulsan
Code:
854442
Size:
100m, 300m, 305m, 500m

Product Description

1.new material of PE/PVC
2.UL,CE,ROHS,ISO9001 SGS comply

outdoor utp cat5e network cable with good warterproof jacket
Product Description:
Reference standard: UL,ISO9001:2000,CE
Material of conductor:ccag/cca/cca+ccs/A copper(99.99%copper)/B copper(85% copper)

diameter:23awg/24awg/26awg/28awg
RoHS complied PVC, PE or LSOH jacket
Complies to TIA/EIA-568B&ISO/IEC 11801

Application:
Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring
Cable Construction:

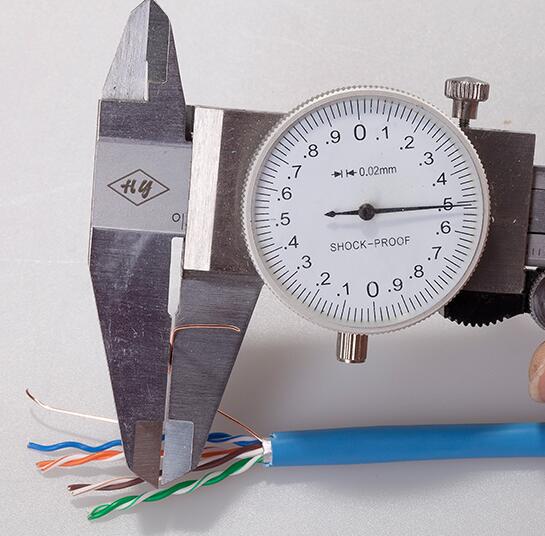

Conductor Dimension: 0.50mm

Core Dimension: 0.91mm 0.92mm
No. Of Pairs: 4
Nom. OD: 5.3mm 14.0mm 13.0mm
Type of Jacket: PVC/PE PVC/PE PVC/PE

Electrical Characteristics :

Electrical Charateristics		UTP CAT5E		FTP CAT5E
Impedance(Ohm)		100±15		100±15
velocity of Propagation		70		70
Minimum Return Loss(dB)		≥23		≥23
Frequency Attenuation(dB/100m)		NEXT	PS-NEXT	ELFEXT	PA-ELFEXT
1 MHz	2.0	62.3	65.3	63.8	60.8
4 MHz	4.1	53.3	56.3	51.7	48.7
10 MHz	6.5	47.3	50.3	43.8	40.8
16 MHz	8.2	44.3	47.3	39.7	36.7
20 MHz	9.3	42.8	45.8	37.7	34.7
31.25 MHz	11.7	39.9	42.9	33.9	30.9
65.5 MHz	17.0	35.4	38.4	27.8	24.8
100 MHz	22.0	32.3	35.3	23.8	20.8

Conductor	Material	Solid Bare Copper
	Size	24 AWG
	Construction	0.51 ± 0.02 mm
Insulation	Material	PE
	Thickness	Average: 0.414 mm Min. at any point: 0.364mm
	Material	1.387 ± 0.05 mm
	Colors	Blue/White-Blue , Orange/White-Orange
		Green/White-Green , Brown/White-Brown
	Elongation	Min. 150 %
	Tensile strength	Min. 0.51 Kg/mm²

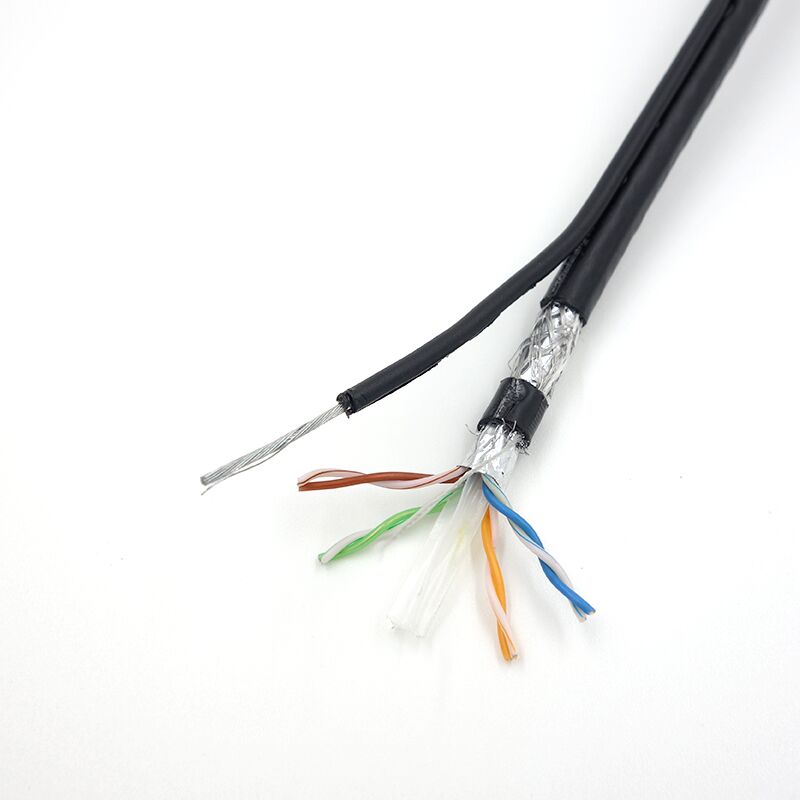

Shield	Al-Mylar Type	Aluminum foil on outside
	Mylar Type
Braid	Material	Tinned Copper
	Coverage	Min. 40% (Nom. 48 %)
Sheath	Material	PVC	LSZH
	Thickness	Average: 0.54 mm	Average: 0.54 mm
		Min. at any point: 0.40 mm	Min. at any point: 0.40 mm
	Diameter	7.2 ± 0.3 mm	7.2 ± 0.3 mm
	Color	Assorted upon request	Assorted upon request
	Elongation	Min. 100%	Min. 125%
	Tensile strength	Min. 1.407 Kg/mm²	Min. 0.917 Kg/mm²
	168100Aging at 100 for 168Hrs	:50% Min.elongation retention:50% :75% Min.tensile strength retention:75%	Min.elongation retention:75% Min.tensile strength retention:70%
