| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 0.5 USD | Production Capacity: | 10,000,000pcs/month |
| Trade Term: | FOB,CFR,CIF,CIP,FCA | Packing: | Polybag or Blister or... |
| Payment Terms: | L/C, T/T, WU | Delivery Date: | About 30 days |
| Min. Order: | 500 Piece/Pieces | ||
| Means of Transport: | Ocean, Air, Land | ||

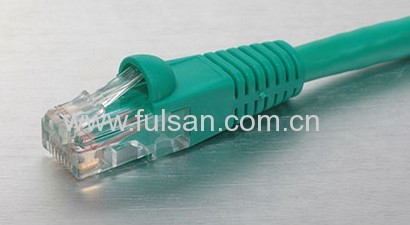

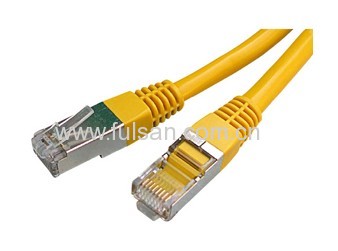

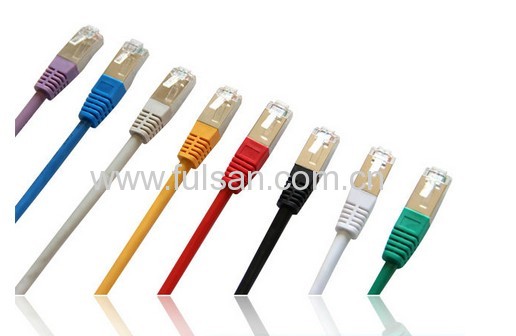

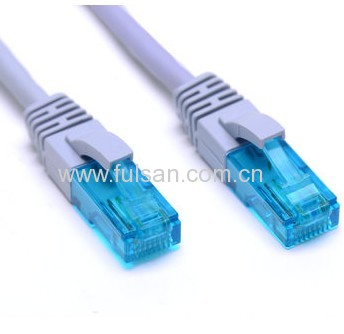

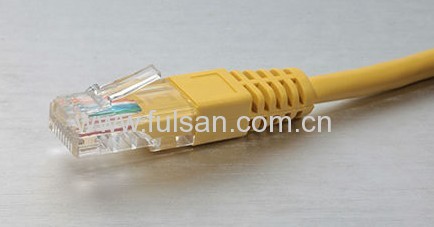

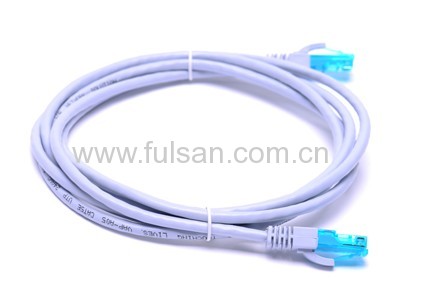

High Quality Communication Cable RJ45 UTP Cat6 Patch Cord
1.Factory price,CE
2.BC,CCA,CCS,305m
3.UTP/FTP/SFTP
Product name: High Quality Communication Cable RJ45 UTP Cat6PatchCord
Specification:

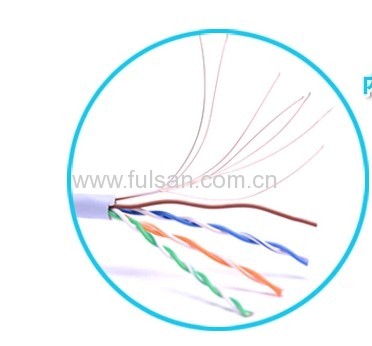

1.Conductor for cat6 cable: 4 pairs 23AWG, BC,CCA,CCS
2.Conductor Dimension: 0.57mm(Optional)
3.Shielding:Al foil+Braid(80*0.12MM)
4.Insulation: HDPE Insulation,1.05±0.06mm
5.Filler: Ripcord
6.Jacket: PVC,new material
7.Nominal Overall Diameter: 6.3mm±0.1mm
8.Length:100m,200m,305m,as your request
9.Package:pull box,wooden reel,paper reel,or OEM welcome
10.Shipping date:15days after receive the deposit
11.Delivery terms:EXW,FOB,CIF
12.Payment terms:T/T
14.Optional specs:
UTP CAT6 4P*1/0.51CU PVC
UTP CAT6 4P*1/0.55CU PVC
UTP CAT6 4P*1/0.56CU PVC
UTP CAT6 4P*1/0.574CU PVC
UTP CAT6 4P*1/0.50CCA PVC
UTP CAT6 4P*1/0.57CCA PVC
Technical data:
Frequency Mhz | Impedance Ohm | RL dB | Attenuation dB/100M | Next dB/100M | ELFEXT dB/100M | PS NEXT dB/100M | PS Elfext dB/100M |
1 | 100±15 | 20 | 2.0 | 65.3 | 63.8 | 62.3 | 60.8 |
4 | 100±15 | 23 | 4.1 | 56.3 | 51.7 | 53.3 | 48.7 |
8 | 100±15 | 25 | 5.8 | 51.8 | 45.7 | 53.3 | 42.7 |
10 | 100±15 | 25 | 6.5 | 50.3 | 43.8 | 47.3 | 40.8 |
16 | 100±15 | 25 | 8.2 | 47.3 | 39.7 | 44.2 | 36.7 |
20 | 100±15 | 25 | 9.3 | 48.5 | 37.7 | 42.8 | 34.7 |
25 | 100±15 | 24 | 10.4 | 44.3 | 35.8 | 41.3 | 32.8 |
31.25 | 100±15 | 24 | 11.6 | 42.9 | 33.9 | 39.9 | 30.9 |
62.5 | 100±15 | 22 | 17.0 | 38.4 | 27.8 | 35.4 | 24.8 |
100 | 100±15 | 20 | 22.0 | 35.3 | 23.8 | 32.3 | 20.8 |
155 | 100±18 | 19 | 28.1 | 33.0 | 20.0 | 29.0 | 17.0 |
200 | 100±22 | 19 | 32.4 | 31.0 | 18.0 | 28.0 | 15.0 |
310 | 100±22 | 18 | 41.8 | 28.0 | 14.0 | 25.0 | 11.0 |
350 | 100±22 | 17 | 44.9 | 27.0 | 13.0 | 24.0 | 10.0 |
Category: Patch Cord Cable
