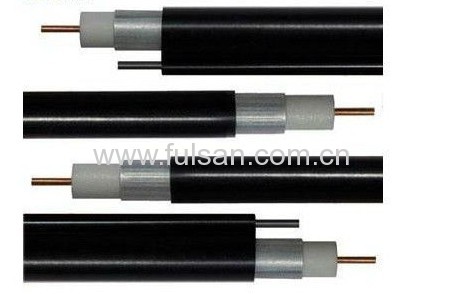

QR540 JCA Trunk Cable

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 1000000/month
Payment Terms: L/C, T/T, WU Packing: According to client's...
Min. Order: 1000 pcs Delivery Date: 30days
Means of Transport: Ocean, Air, Land

Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cable manufacturer and factory in China. We can produce Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cableaccording to your requirements. More types of Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cablewanted, please contact right now!
Description:
1) Construction
Center Conductor: 3.15mm Bare Copper/Copper Clad Aluminum
Dielectric: 13.05mmFoam PE
Outer Conductor: 13.72mm Aluminum Tube
Outer Conductor Thickness: 0.343mm
Jacket: 15.50mm PVC / PE
Jacket Wall Thickness: 0.89mm
Messenger: 2.77mm Steel
Jelly/APD Per Customers' Special Requirement

2) Characteristics
Impedance: 75+/-3 Ohm
Capacitance: 50+/-3nF/km, 15.3+/-1pF/ft
Velocity of Propagation: 87%

3)Attenuation
5MHz 0.46dB/100 m
50MHz 1.44dB/100 m
100MHz 2.09dB/100 m
200MHz 3.04dB/100 m
300MHz 3.71dB/100 m
400MHz 4.33dB/100 m
450MHz 4.59dB/100 m
500MHz 4.89dB/100 m
550MHz 5.12dB/100 m
600MHz 5.38dB/100 m
650MHz 5.65dB/100 m
750MHz 6.07dB/100 m
850MHz 6.51dB/100 m
1000MHz 7.12dB/100 m
QR540 JCA Trunk Cable QR540 JCA Trunk Cable QR540 JCA Trunk Cable QR540 JCA Trunk Cable QR540 JCA Trunk Cable QR540 JCA Trunk Cable

Category: Coaxial Cable
