COA-047
1. We focus on the manufacturing of rf connectors, adaptors, cables since 1991
2. Low VSWR up to high frequency
3. Waterproof and air proof
4. Mating with many applications
5. Low price and high quality
6. Various kinds, can meet your diversified purchase need
7. We keep developing new models, if our present products are not suitable for you, we can also customize for you!

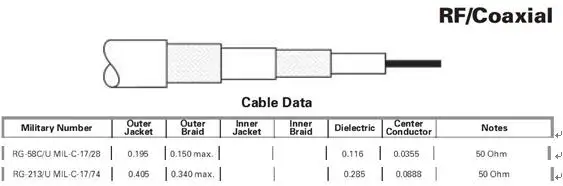

| Construction Spectification | ||
| Item | Material | Diamenter (mm) |
| 1. Inner Conductor | Bare Copper | 7x0.752 |
| 2. Dielectric | Solid Polyethylene | 7.24 |
| 3. Outer Conductor | Bare Copper Braid | 7.85 |
| 4. Jacket | PVC | 10.3 |
| Electrical Characteristics | ||
| Capacitance (Pf/M) | 101.05 | |
| Impedance (Ohm) | 50 | |
| Velocity(%) | 66 | |
| Shielding Effectiveness (>dB) | 10 | |
| Bending Radius (mm) | 40 | |
| Max. Oper. Voltage (VMS) | 5000 | |
| Max. Oper. Frequency (MHz) | 1000 | |
| Operating Temp. (°C) | -20 to 80 | |
| Attenuation (Typical) | ||
| Frequency (MHz) | Attenuation (>dB/100m) | Attenuation (>dB/100m) |
| 100 | 6.6 | |
| 400 | 14.1 | |
| 1000 | 24 | |

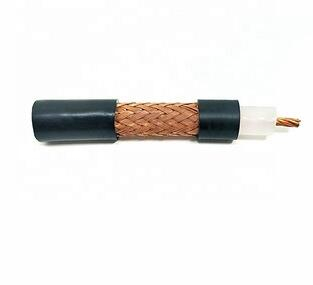

Low loss corrugated cable 50Ohm RG213 coaxial cable
-- RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM) .
-- We focus on coaxial assemblies.
-- Our custom RF cable assemblies are built-in and shipped worldwide.
-- RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .
-- RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U.
-- Coaxial cable : Mini-coax cable,Flexible test cable,Low loss cable,RG Series cable,Corrugated cable,Hand Form cable,Semi-Rigid cable.
-- RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.
-- If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
