RG11 Digital Coaxial Cable

Quantity:
Payment & Shipping Terms Supply Capacity
Payment Terms: L/C, T/T, WU Production Capacity: 1000000/month
Min. Order: 1000 pcs Packing: According to client's...
Means of Transport: Ocean, Air, Land Delivery Date: 30days

Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cable manufacturer and factory in China. We can produce Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cableaccording to your requirements. More types of Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cablewanted, please contact right now!
Specifications:

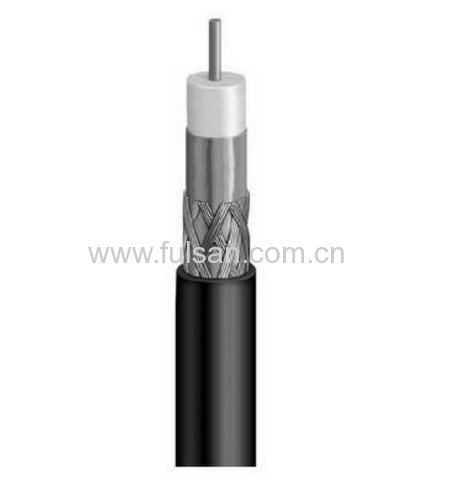

1)1.63mmCCS +7.11mmFoamed PE + A/P (bonded) + 60% AL Braiding +10.03PVC(or PE)
2)Customers' specifications are welcomed
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120,128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant , UV, or UL available.
Characteristics:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ] dB/100meters
5MHz:   1.25dB           400MHz: 8.53dB
55MHz: 3.15dB          450MHz: 9.02dB
83MHz: 3.87dB          500MHz: 9.51dB
187MHz: 5.74dB         550MHz: 9.97dB
211MHz: 6.23dB         600MHZ: 10.43dB
250MHz: 6.72dB         750MHZ: 11.97dB
300MHz: 7.38dB         865MHZ: 13.05dB
350MHz: 7.94dB        1000MHZ: 14.27dB

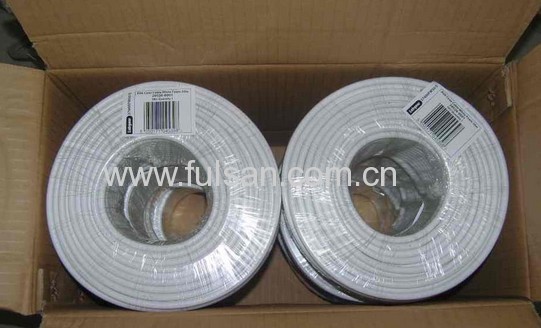

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;

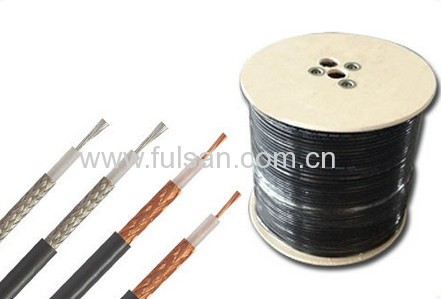

2) Inner packing: Wooden reel, plastic reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request

RG11 Digital Coaxial Cable RG11 Digital Coaxial Cable RG11 Digital Coaxial Cable RG11 Digital Coaxial Cable RG11 Digital Coaxial Cable
