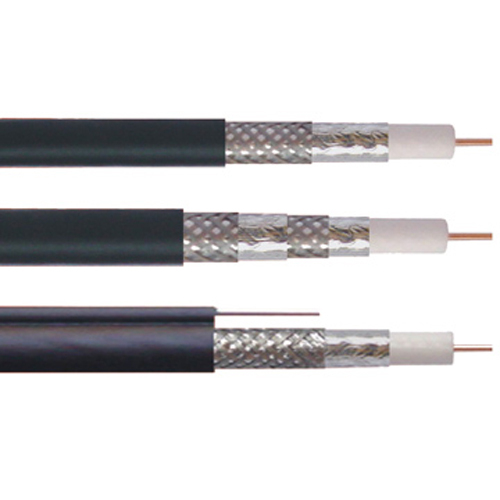

RG59 Coaxial Cable with RoHS Compliant

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 0.5 USD Production Capacity: 1000000/month
Trade Term: FOB,CFR,CIF,CIP,FCA,EXW Packing: According to client's...
Payment Terms: L/C, T/T, WU Delivery Date: 30days
Min. Order: 1000 Meter
Means of Transport: Ocean, Air, Land

Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cable manufacturer and factory in China. We can produce Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cableaccording to your requirements. More types of Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cablewanted, please contact right now!

Specifications:
1)0.81mmBC(or CCS)+ 3.66mmFoamed PE + A/P(bonded)+60% AL Braiding +6.1mm PVC
2)Customers' specifications are welcomed.
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 30-- 97% available;
7) PVC jacket of Flame retardant ,UV, or UL available.
Characteristics:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ]  dB/100meters
5MHz:    2.81dB            500MHz: 18.6dB
55MHz:   6.72dB           550MHz: 19.48dB
187MHz: 11.80dB        600MHz: 20.31dB
250MHz: 13.43dB        750MHz: 22.84dB
350MHz: 15.72dB        865MHZ: 24.65dB
400MHz: 16.71dB        1000MHZ: 26.61dB

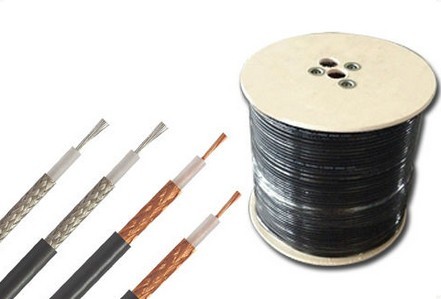

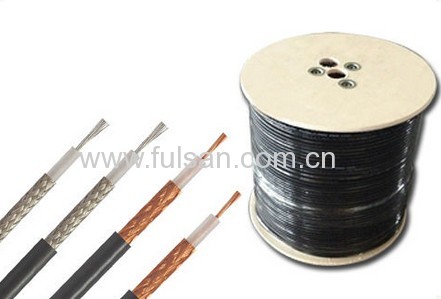

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

RG59 Coaxial Cable with RoHS CompliantRG59 Coaxial Cable with RoHS CompliantRG59 Coaxial Cable with RoHS CompliantRG59 Coaxial Cable with RoHS Compliant

Category: Coaxial Cable

Related Category: DVI Cable  DisplayPort Cable  Computer Cable  Speaker Cable  Patch Cord Cable

Payment & Shipping Terms Supply Capacity
Unit Price: 0.5 USD Production Capacity: 1000000/month
Trade Term: FOB,CFR,CIF,CIP,FCA,EXW Packing: According to client's...
Payment Terms: L/C, T/T, WU Delivery Date: 30days
Min. Order: 1000 Meter
Means of Transport: Ocean, Air, Land

Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cable manufacturer and factory in China. We can produce Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cableaccording to your requirements. More types of Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cablewanted, please contact right now!

Specifications:
1)0.81mmBC(or CCS)+ 3.66mmFoamed PE + A/P(bonded)+60% AL Braiding +6.1mm PVC
2)Customers' specifications are welcomed.
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 30-- 97% available;
7) PVC jacket of Flame retardant ,UV, or UL available.
Characteristics:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ]  dB/100meters
5MHz:    2.81dB            500MHz: 18.6dB
55MHz:   6.72dB           550MHz: 19.48dB
187MHz: 11.80dB        600MHz: 20.31dB
250MHz: 13.43dB        750MHz: 22.84dB
350MHz: 15.72dB        865MHZ: 24.65dB
400MHz: 16.71dB        1000MHZ: 26.61dB
Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

RG59 Coaxial Cable with RoHS CompliantRG59 Coaxial Cable with RoHS CompliantRG59 Coaxial Cable with RoHS CompliantRG59 Coaxial Cable with RoHS Compliant

Category: Coaxial Cable

Related Category: DVI Cable  DisplayPort Cable  Computer Cable  Speaker Cable  Patch Cord Cable
