RG59 with Messenger for Outdoor 75 ohm TV Coaxial Cable Kable

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 1000000drum/month
Payment Terms: L/C, T/T, WU Packing: According to client's...
Min. Order: 5000 Meter Delivery Date: 30 days
Means of Transport: Ocean, Air, Land

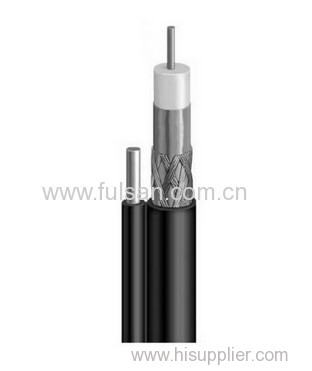

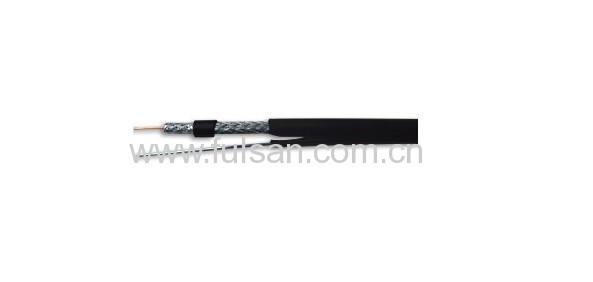

RG59 COAXIAL CABLE WITH MESSENGER

rg59 with messenger:
0.81mm CCS+3.66mm FPE+Bonded Alu/Pet Foil+80/0.12mm Alu braid Wire+6.10mm PVC Jacket+1.15mm steel wire


rg59 with messenger Construction and Physical Dimensions:

Center Conductor:

0.81mm 20 AWG Copper-Clad-Steel

Dielectric:

3.66mm Gas Expanded Polyethylene

1st Shield:

Aluminum Laminated Tape Bonded to the Dielectric

2nd Shield:

36 AWG Aluminum Braid Wire 70% Coverage

Jacket:

6.10mm PVC Jacket

Messenger:

1.15mm Steel Wire



Electrical Properties:

Impedance:

75.0 +/- 3.0 Ohms

Capacitance:

53+/- 3nF/km

Velocity of propagation:

85.0% Nominal



 Attenuation: @ 68 ºF (20 ºC)

Frequency (MHz)

Max value (db/100m)

Max value (db/100ft)

5

2.82

0.86

55

6.73

2.05

83

8.04

2.45

187

11.81

3.60

211

12.47

3.80

250

13.45

4.10

300

14.60

4.45

350

15.75

4.80

400

16.73

5.10

450

17.72

5.40

500

18.70

5.70

550

19.52

5.95

600

20.34

6.20

750

22.87

6.97

865

24.67

7.52

1000

26.64

8.12



Options for material:

1) Center conductor:  BC, CCS, TC and CCA available;

2) Dielectric: Foam PE or Solid PE;

3) Foil: Non-bonded Al/Pet foil, Bonded Al/Pet foil, Double bonded Al/Pet/Al foil,

           Double Non-bonded Al/Pet/Al foil, Boned Copper foil; Copper colored foil available;

4) Braiding wire: AL, BC, CCA and TC available;

5) Braiding wire diameter: 0.10, 0.12, 0.13, 0.15, 0.16mm available;

5) Braiding net: 32, 48, 64, 80, 96, 120, 128, 144 and more available;

6) Braiding coverage: Between 30- 97% available;

7) Jacket: PVC,PE or LSZH with or without tracer of Flame retardant, UV, or UL available

Category: Coaxial Cable
