RG7 Coaxial Cable with CE Approved

Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cable manufacturer and factory in China. We can produce Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cableaccording to your requirements. More types of Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cablewanted, please contact right now!

Specifications:

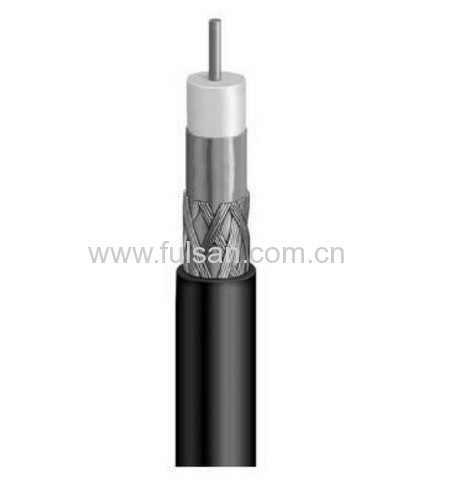

1)1.29mm CCS + Foamed PE + Bonded Al Foil + 60%AL Braiding + 8.1mmPVC (or PE)
2)Customers' specifications are welcomed.
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120,128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant , UV, or UL available.
Characteristics:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ]  dB/100meters
5MHz:   1.54dB         400MHz: 10.73dB
55MHz:  4.10dB        450MHz: 11.35dB
83MHz:  4.92dB        500MHz: 12.04dB
187MHz: 7.28dB       550MHz: 12.63dB
211MHz: 7.74dB       600MHZ: 13.28dB
250MHz: 8.40dB       750MHZ: 14.99dB
300MHz: 9.25dB       865MHZ: 16.17dB
350MHz: 10.01dB     1000MHZ: 17.45dB
Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, paper reel available
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
