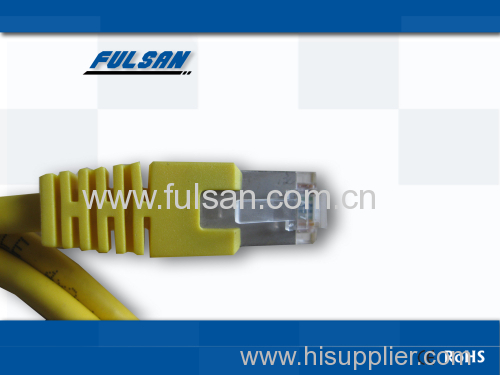

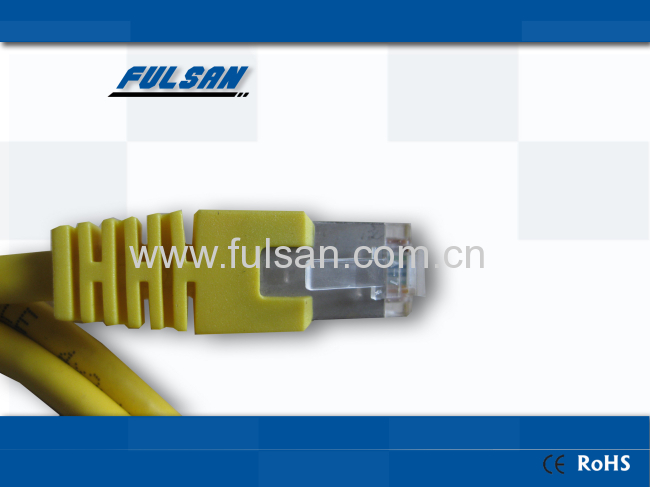

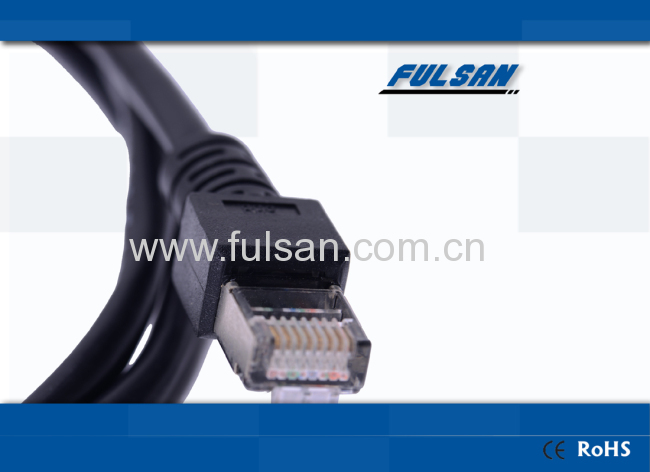

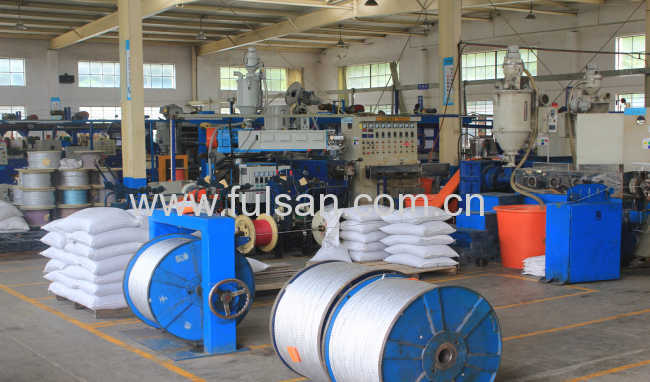

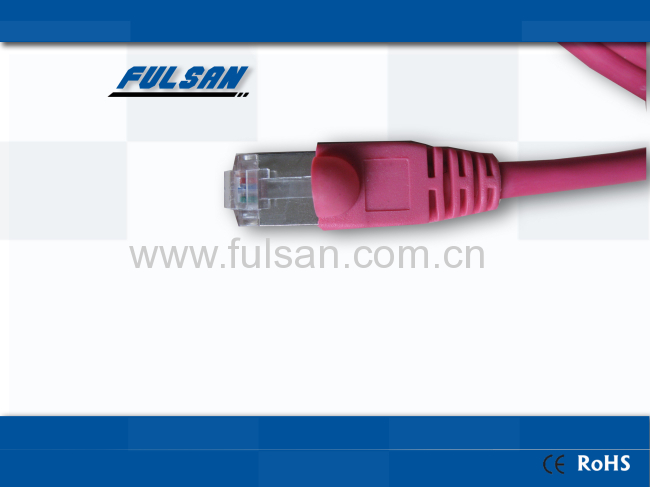

RJ 45 patch cord cable

Product Name: RJ 45 patch cord cable

Industrial Standards:YD/T1019-2001(America) ANSI/TIA/EIA-568-B,(Internation) ISO/IEC 11801/71156.

Conductor: 7 copper wires Ø0.20 mm (0.008"), 23 AWG

Insulation: High-density Polythene(HDPE)

Jacket:Polyvinylchloride(PVC) ,Polyethylene(PE) or Low Smoke Zero Halogen(LSZH)

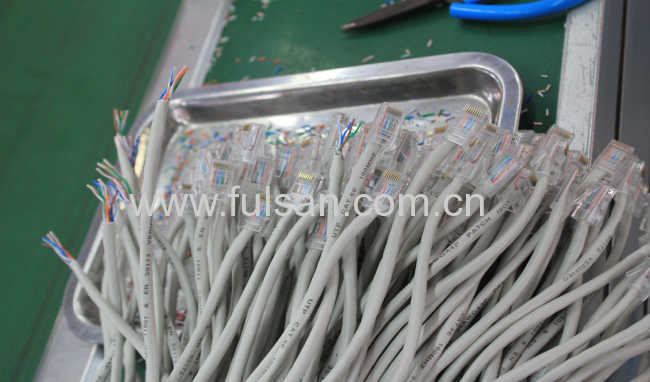

Enhance Connector: Two-Row RJ45 8P8C Gold Plating 3 u"

Color code ref. To TIA 568ATIA568BTIA568A-T568B110-RJ45110-110

Ratted Temperature: 75.

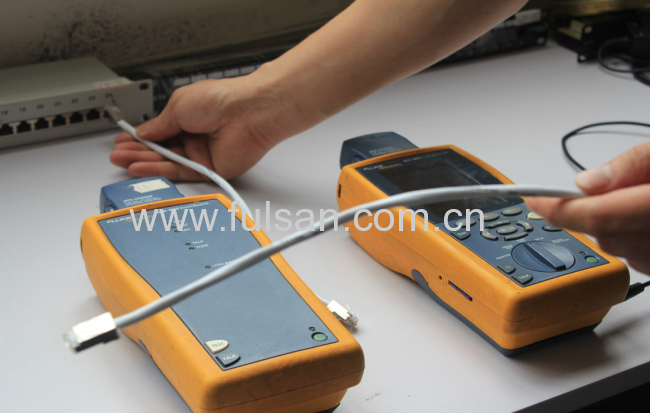

Basic Data Sheet

Cat5, Cat5e, Cat6 and Cat7 Patch Cord Performance Specification Chart
Parameter	Cat5 Patch Cables and Class D with additional requirements TSB95 and FDAM 2	Cat5e Patch Cables ('568-A-5)	Cat6 Patch Cables Class E (Performance at 250 MHz shown in parentheses)	Proposed Cat7 Patch Cables Class F (Performance at 600 MHz shown in parentheses)
Specified frequency range	1-100 MHz	1-100 MHz	1-250 MHz	1-600 MHz
Attenuation	24 dB	24 dB	21.7 dB (36 dB)	20.8 dB (54.1 dB)
NEXT	27.1 dB	30.1 dB	39.9 dB (33.1 dB)	62.1 dB (51 dB)
Power-sum NEXT	N/A*	27.1 dB	37.1 dB (30.2 dB)	59.1 dB (48 dB)
ACR	3.1 dB	6.1 dB	18.2 dB (-2.9 dB)	41.3 dB (-3.1 dB)**
Power-sum ACR	N/A	3.1 dB	15.4 dB (-5.8 dB)	38.3 dB (-6.1 dB)**
ELFEXT	17 dB (new requirement)	17.4 dB	23.2 dB (15.3 dB)	ffs***
Power-sum ELFEXT	14.4 dB (new requirement)	14.4 dB	20.2 dB (12.3 dB)	ffs***
Return loss	8 dB* (new requirement)	10 dB	12 dB (8 dB)	14.1 dB (8.7 dB)
Propagation delay	548 nsec	548 nsec	548 nsec (546 nsec)	504 nsec (501 nsec)
Delay skew	50 nsec	50 nsec	50 nsec	20 nsec
