RJ45 Cat5e CAT6 CAT6A Rack Mount Patch Panel

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 10,000,000pcs / month
Payment Terms: L/C, T/T, WU Packing: Paper Box or According...
Min. Order: 100 Piece/Pieces Delivery Date: About 20 days.
Means of Transport: Ocean, Air, Land

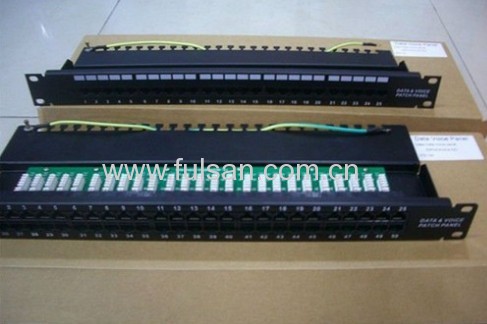

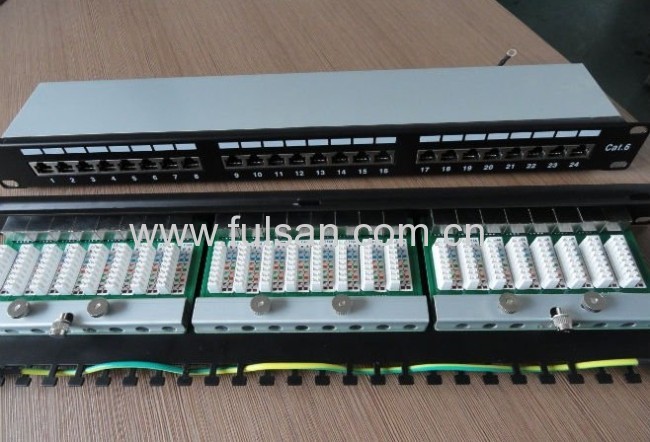

24 port FTP Cat5e patch panel rj45 patch panel Cat6 Patch Panel with back bar 19'' 1U,

Cat 5e/cat6 utp patch panel 24ports dual idc, krone idc, 110idc.


Specifications
UTP cat5e 24ports patch panel
1. Space saving, high-density
2. ISO9001, ROSH Approval
3. OEM is available
UTP cat5e 24 ports patch panel
1. Space saving, high-density
2. ISO9001, ROSH Approval


Description:
19" standard size for mounting in racks and cabinets
This patch panel is designed for 22-26 AWG solid conductors
Height: 1U (12, 16 and 24 ports), 2U (32 and 48 ports)
Horizontal termination

Material:
Housing: ABS 94V-0
IDC: PC UL94V-0
PCB: FR-4 1.6 mm (0.06") thick, 2 layers.
Contacts: 0.35 mm (0.014") phosphor bronze with 1.27 micron (50 microinches) gold plating on contact area
Metal housing: 1.6 mm (0.06") thick metal.
Construction characteristic features:
Color marking of conductors according to T568B and T568A
Numeral marking of ports on the front side of the panel
Space for additional marking

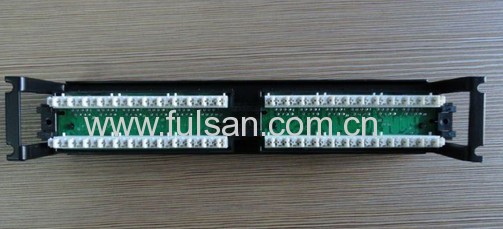

Color and numeral marking of IDC modules on the rear side of the panel
Hyperline patch cord usage provides the best connection
IDC Dual contacts provide minimal crosstalk
110 type punch down tool is used for cable termination


Electrical characteristics:
According to UL 1863
Current rating: 1.5 A max
Voltage rating: 150 V
Contact Resistance: 20 mOhm
Insulation Resistance: 500 MOhm
Dielectric withstand voltage: 1000 V AC RMS, 60Hz/1min


1. Apply to install standard 19" equipment bracket, case and wall mounted tow rack.

2. Various information modules provide more choice for cabling system operation.

3. Universal sequence-T568A and T568B color sequence labeled on modules clearly.

4. The design of other information modules goes beyond expected grade demand.

5. Label and embedded icons are convenient to label and manage.

6. Single-cord and multi-line pair impact tools are available.


Material:

Panel Cold rolled steel(thickness1.5mm)
Back Bar Cold rolled steel(thickness1.5mm)
Housing ABS
Spring Wire Phosphor Bronze With Gold-plated 3u -50 u
IDC Contact Phosphor Bronze
IDC Holder High Impact PC


Category: Patch Panel

Related Category: Computer Cable  Speaker Cable  Patch Cord Cable  Lan Cable  USB Data Cable
