SSTP RJ45 Patch cord cat7 cat6a 1.5m/5FT

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 0.6~6.0 USD Production Capacity: 10,000,000pcs / month
Trade Term: FOB Packing: Blister or Polybag or...
Payment Terms: L/C, T/T, WU Delivery Date: About 30 days
Min. Order: 500 Piece/Pieces
Means of Transport: Ocean, Air, Land

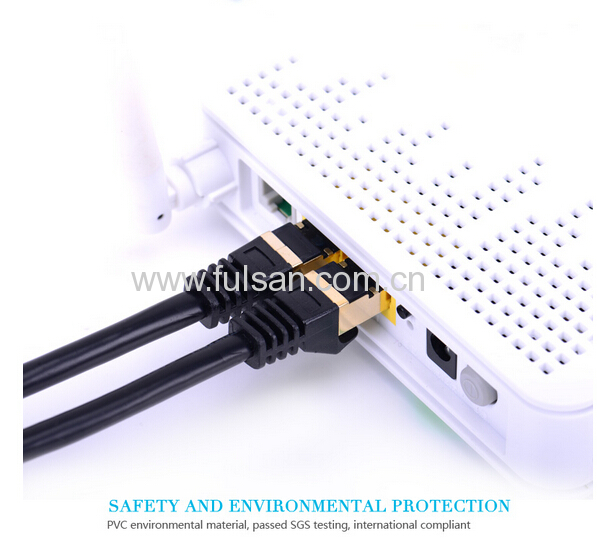

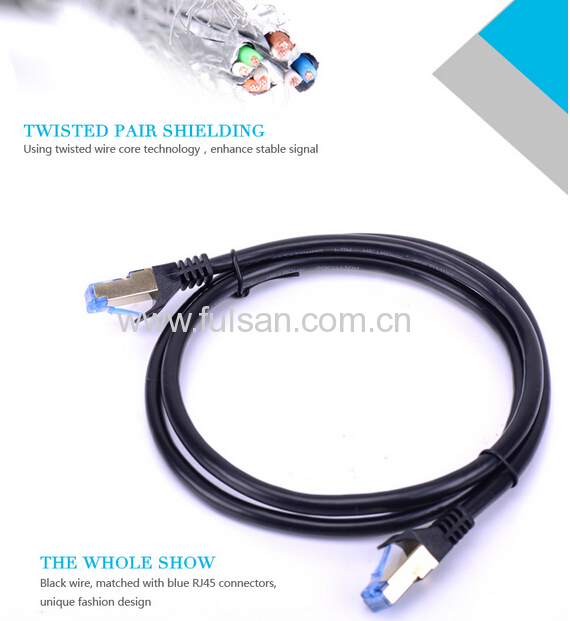

RJ45 cat7 network sstp patch cord cable with plugs


Description

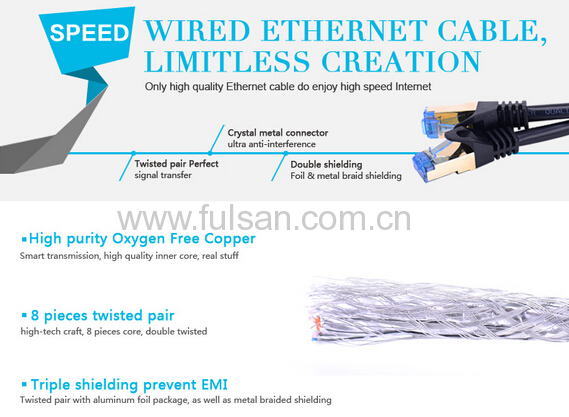

Cat7  fixed length network cables are the perfect combination of value and performance. Available in a large assortment of colors and lengths, we have a cable to fit every situation. Each cable is made of 24AWG,26AWG pure copper listed pair conduits with 50u" gold plated contacts (short body). Most budget cables skimp with 10u". Each cable features color matched, snagless, strain relief boots.



Feature or Specification

1.The cable connects all the hardware destinations on a Local area network.

2.With snagless molded strain relief, this cable's rj45 tap is protected from being damaged durning installation

3.7 copper wires Ø0.20mm (0.008''), 24 awg

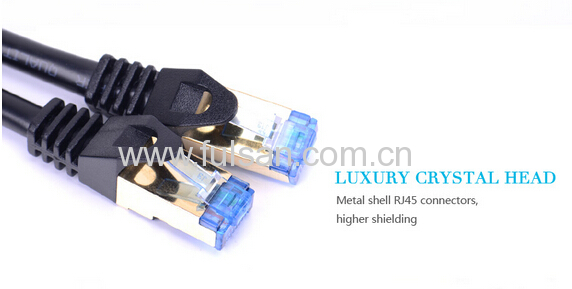

4.It features 50 micro gold plated rj45 (male to male) connectors which ensure clear transmission.

5.Features: Gold plated connectors

6.Compliance Standards: EIA/TIA-56B catagory 6

7.Connector(s):1×rj-45 -male

8.Jacket:Polyvinylchloride(PVC), Polyethylene(PE) or low smoke zero halogen(LSZH)

9.CE,ROHS compliant



Electrical Characteristic:

1.0-100.0MHz Impedance (ohms):100 +/- 15

1.0-350.0MHz Delay Skew (ns/100m):<=45

Pair-to-Ground Capacitance Unbalance (pF/100m):<=330

Max. Conductor DC Resistance 20 degree(ohms/km):93.8

Resistance Unbalance (%):<=5

Working Temperature:-5°C~+50°C

Storage Temperature:-20°C~+60°C


Product: Patch cord
Category: Cat 5e, Cat6, Cat 6a, Cat7
Shirleding: UTP, FTP, SFTP, SSTP
Connector RJ 45 connector
Conductor Bare copper, CCA ( copper clad alunimum) or CCS ( copper clad steel)
Guage 22AWG, 24AWG, 26AWG, 28AWG, 30AWG
Insulation HDPE

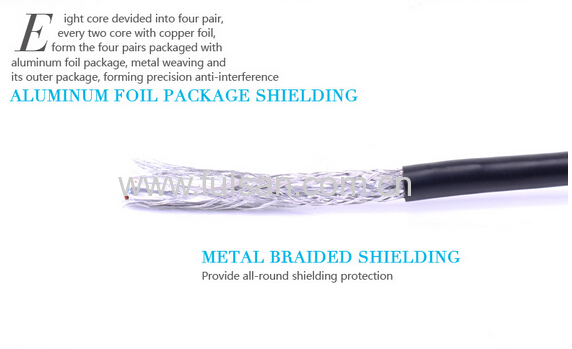

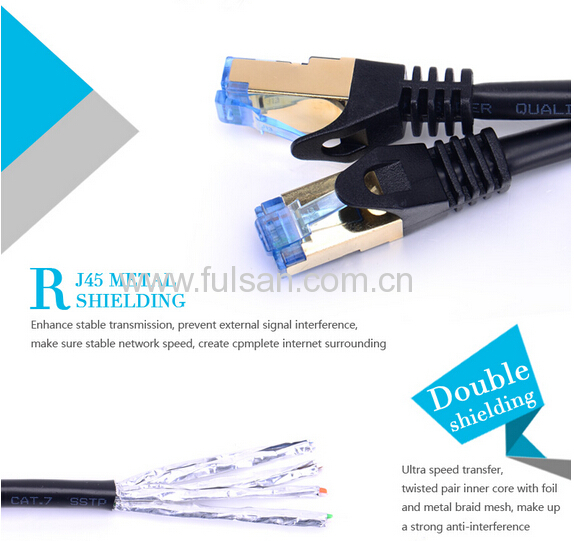

Shirleding Aluminum foil and Braiding
Jacket PVC, LSZH.
Color Black, white, grey, blue, red, orange ,yellow, purple,green ,transparent ^
OD 5.0mm, 5.2mm, 5.4mm, 5.7mm ...
Length 0.25m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 50m, 80m,100m,etc
Compliance ATC, UL, ETL, CE, RoHS, REACH
Application 1.PC with Switch, Hub, ADSL, Router, Wall Socket, Network Module Plate,etc.
2.Connect 2 XBOX consoles for multi player gaming
3.ADSL, Modem with Hub or Router
Compatibility 100 Base-T4
100 Base-TX
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
155 Mbps ATM
622 Mbps ATM
Package Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized
ELECTRONICS
QC 100% open and short test
Voltage DC300V 5M ohm/10ms
Insulation Resistance 10M ohm min
Contact Resistance 3 max
Working Temperature -25C-80C

Category: Patch Cord Cable
