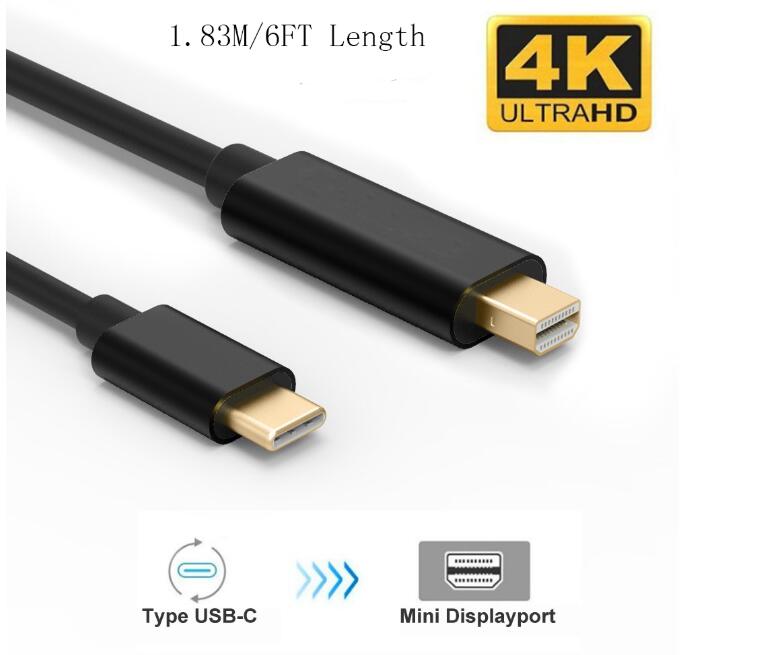

Mini DisplayPort Cable USB 3.1 Type C to Mini DisplayPort Cable 4K@60Hz

Connect a USB Type-C device directly to the Mini DisplayPort input of an HDTV, Projector or Display to transmit video and audio.

Key Features

• High Quality USB 3.1 Type C (USB-C) Male to Mini DisplayPort Male Adapter Cable
• Connect the USB 3.1 Type C port of a Smartphone, Hard Drive, Tablet, Digital Camera or other device to a Display with Mini DisplayPort port
• Support up to a 4K@60Hz resolution
• Reversible, symmetrical USB Type C connector
• Plug and Play, no driver is required

Technical Spec

Electrical Characteristics
• Nominal Velocity of Propagation - 21.6Gbps
• DC Resistance - 300V
• Dielectric Strength - AC 500V/minute
• Insulation Resistance - 10MΩ
Physical Characteristics:
• Voltage Rating - 30V
• Maximum Bend Radius - 90mm
• Temperature Rating - 80ºC
• Operating Temperature Range - -20ºC- 80ºC
• Storage Temperature Range - -25ºC- 85ºC
• Approvals - RoHS, CE, UL Compliant

Conductor 1 (4 Pairs)
• Conductor Type - 32AWG Tinned Copper
• Insulation - Foamed PE SKIN
• Drain Wire - 32AWG Tinned Copper
• Shield - Aluminum Foil, 100% Coverage

Conductor 2 (1 Pair)
• Conductor Type - 32AWG Tinned Copper
• Insulation - HDPE
• Shield - Aluminum Foil, 100% Coverage

Conductor 3 (4 Cores)
• Conductor Type - 32AWG Tinned Copper
• Insulation - HDPE
Conductor 4 (2 Cores)
• Conductor Type - 26AWG Tinned Copper
• Insulation - HDPE
Overall Cable
• Foil Shield - Aluminum Foil, 100% Coverage
• Braided Shield - 16/8/0.08, Tinned Copper
• Jacket - PVC, Black, O.D.: 4.5±0.2mm
Connector 1

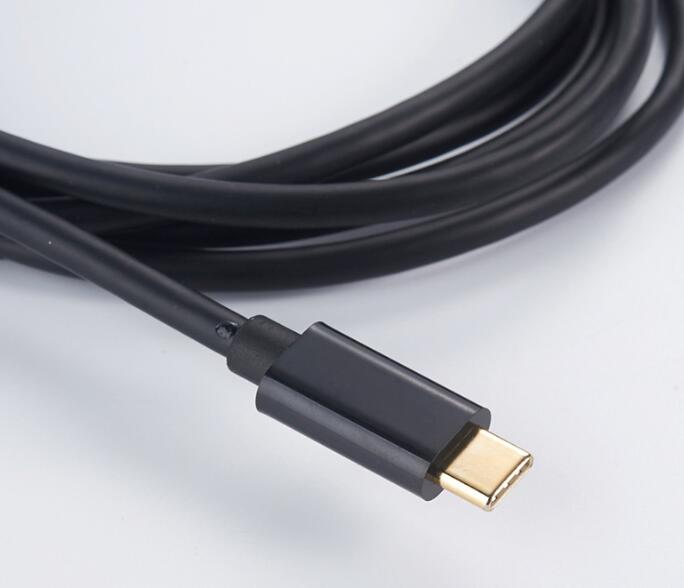

• Connector Type - USB 3.1 Type C Male
• Pin Construction - Phosphor Copper
• Injection - 45P PVC
• Plating - Gold
Connector 2

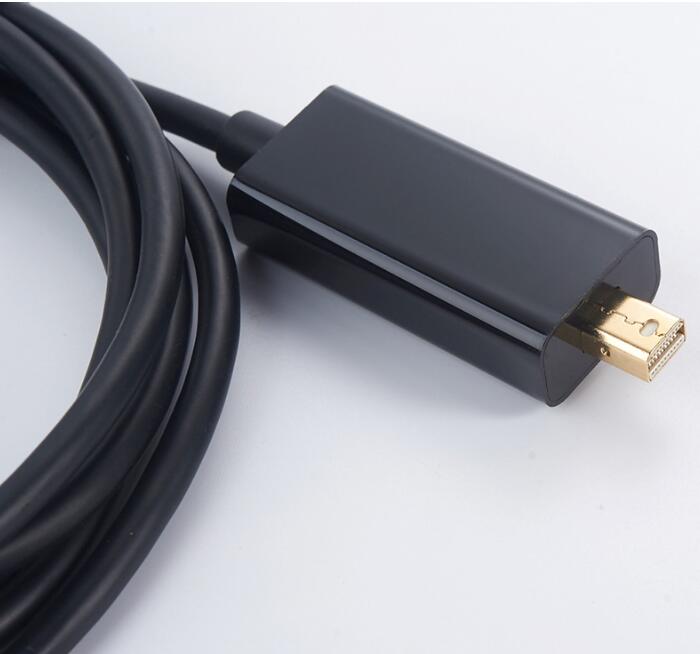

• Connector Type - Mini DisplayPort Male
• Pin Construction - Phosphor Copper
• Injection - ABS
