| Quantity: | |
|---|---|

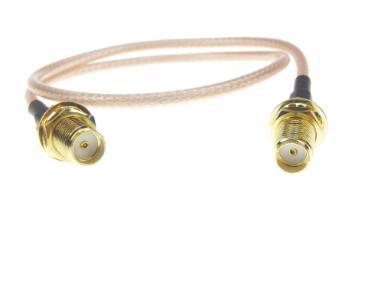

COA-028
Product description
Material | |
Center contacts | Male---brass gold plated |
Female---beryllium copper gold plated | |
Bodies other metal parts | Brass gold plated or nickel plated |
Stainless steel passivation or gold plated | |
Insulators | PTFE |
Crimp ferrule | Brass nickel plated |
Gasket and seal rings | Silicone rubber |
Technical Characteristics | |
TemperatureRange | -65 to + 165°C |
Impendence | 50 Ω |
FrequencyRange | DC to 6 GHz |
Insertion Loss | 0.1 dB Max @ 1 GHz |
VSWR | 1.15 max @ DC - 4 GHz 1.40 max @ 4 - 6 GHz |
Contact resistance | Center Contact ≤10mΩ Outer Contact ≤5mΩ |
Insulation Resistance | ≥1000 MΩ |
RF-Leakage | 60 dB Min. @ 1 GHz (flexible cable) 70 dB Min. @ 1 GHz (semi-rigid cable) |
Voltage Rating (at sea level) | ≤ 170 Vrms (depending on cable) |
Dielectric Withstanding Voltage | 500 Vrms (at sea level) |
Engagement Force | ≤ 3.4 lbs (15N) |
Disengagement Force | ≥ 1.4 lbs (6N) |
Product information
1.FrequencyRange:DC up to 3GHz
2. Characteristic Impedance :50 ohm ( Nominal )
3. Temperature :-65°C to +165°C
4. Voltage Rating:375 Volts Peak
5. Dielectric Withstanding Voltage:500 Volts rms
6. VSWR: 1.30 (1GHz-3GHz)
7. Insulation Resistance :5000M ohm MIN / DC 100V
Antenna pigtail antenna RF cables application:
• | Antennas | • | Automotive | • | Base Stations |
• | Broadcast (75 Ω) | • | Cable Assemblies | • | Cable Modems |
• | Components | • | Computers/LANs | • | Instrumentation |
• | Oscilloscopes | • | Medical Equipment | • | Mil-Aero |
• | Radios | • | Satcom | • | Surge Protection |
Product description
Material | |
Center contacts | Male---brass gold plated |
Female---beryllium copper gold plated | |
Bodies other metal parts | Brass gold plated or nickel plated |
Stainless steel passivation or gold plated | |
Insulators | PTFE |
Crimp ferrule | Brass nickel plated |
Gasket and seal rings | Silicone rubber |
Technical Characteristics | |
TemperatureRange | -65 to + 165°C |
Impendence | 50 Ω |
FrequencyRange | DC to 6 GHz |
Insertion Loss | 0.1 dB Max @ 1 GHz |
VSWR | 1.15 max @ DC - 4 GHz 1.40 max @ 4 - 6 GHz |
Contact resistance | Center Contact ≤10mΩ Outer Contact ≤5mΩ |
Insulation Resistance | ≥1000 MΩ |
RF-Leakage | 60 dB Min. @ 1 GHz (flexible cable) 70 dB Min. @ 1 GHz (semi-rigid cable) |
Voltage Rating (at sea level) | ≤ 170 Vrms (depending on cable) |
Dielectric Withstanding Voltage | 500 Vrms (at sea level) |
Engagement Force | ≤ 3.4 lbs (15N) |
Disengagement Force | ≥ 1.4 lbs (6N) |
Product information
1.FrequencyRange:DC up to 3GHz
2. Characteristic Impedance :50 ohm ( Nominal )
3. Temperature :-65°C to +165°C
4. Voltage Rating:375 Volts Peak
5. Dielectric Withstanding Voltage:500 Volts rms
6. VSWR: 1.30 (1GHz-3GHz)
7. Insulation Resistance :5000M ohm MIN / DC 100V
Antenna pigtail antenna RF cables application:
• | Antennas | • | Automotive | • | Base Stations |
• | Broadcast (75 Ω) | • | Cable Assemblies | • | Cable Modems |
• | Components | • | Computers/LANs | • | Instrumentation |
• | Oscilloscopes | • | Medical Equipment | • | Mil-Aero |
• | Radios | • | Satcom | • | Surge Protection |
