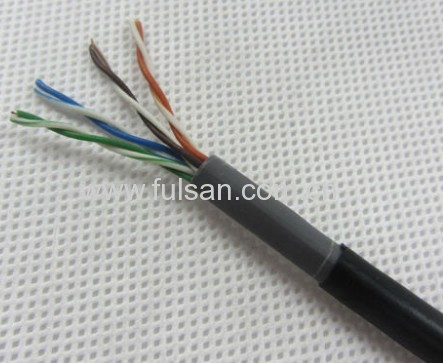

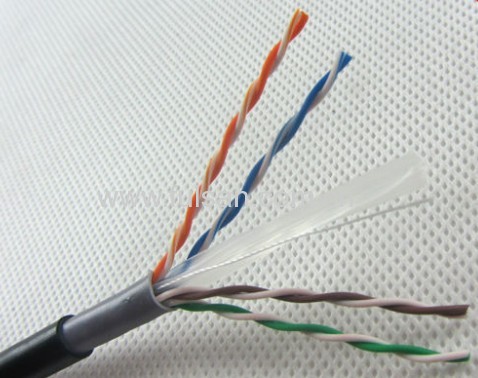

UTP CAT5e/Cat6 Outdoor Cable

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 24.0 USD Production Capacity: 10,000,000pcs/Month
Trade Term: FOB,CFR,CIF,CIP,FCA,EXW Packing: Drum or Easy Pull Box...
Payment Terms: L/C, T/T, WU Delivery Date: About 30 days
Min. Order: 50 Piece/Pieces
Means of Transport: Ocean, Air, Land

Introduction

CAT5E lan cable is  devided into UTP(Unshielded Twisted Pair )and FTP(Shielded Twisted Pair ). This 4-pairs cat5e cable is tested for power Sum NEXT,ELFEXT,Delay Skew. Propagation Delay and any other criteria as specified in the emerging stangand. Applications can include Voice, ISDN,ATM155 AND 622Mbps,100Mbps TPDDI,Fast and Gigabit Ethernet,Shielding protects against EMI/RFI interference,

It Provides 100MHz bandwidth,CAT5 cable based on TIA/EIA-568-A standards specifications, commonly used 8P8C modular plug.


Specifications

Conductor: 24AWG(0.50+/-0.05mm) Solid/stranded Bare Copper,CCA,CCAG,CCAU,CU,22/23/24/26AWG

Cabling : 4 twishted pairs cabled around a cross shaped central filler into the cable core.

Colour:grey,blue,red,yellow,green,black,white, also as customers requirements.

Pair Insulation:Polyethylene, 0.90+/-0.05mm HDPE
Outer Cable Diameter: 5.7 ± 0.2 mm

Sheat: 5.0+/-0.1mm PVC/PE/LSZH

Options:Jelly filled ,UV,FR,ROHS complied is available
Operating temperature: -20°C to +75°C


Electrical characteristics

Frequency

(Mhz)

Return

loss(db)

Attenuation

(db/100m)

NEXT

(db)

ACR

(db)

PSNEXT

(db)

ELEFXT

(db/100m)

PSELEXT

(db/100m)

Delay

(ns/100m)

0.772

19.4

1.8

67

65

64

66

63

575

1.0

20.0

2.0

65.3

63.0

62.3

63.8

60.8

570

4.0

21.0

4.1

96.3

52.0

53.3

51.7

48.7

552

6.0

24.5

5.8

91.8

46.0

48.8

45.7

42.7

546.7

10.0

25.0

6.5

50.3

44.0

47.3

43.8

40.8

546.4

16.0

25.0

8.2

47.3

39.0

44.3

39.7

36.7

543

20.0

25.0

9.3

45.8

37.0

42.8

37.7

34.7

542

25.0

24.3

10.4

44.3

34.0

41.3

35.8

32.8

541.2

31.25

23.6

11.7

42.9

31.0

39.9

33.9

30.9

540.4

62.5

21.5

17

38.4

21.0

35.4

27.8

24.8

536.6

100.0

20.1

22

35.3

13.0

32.3

23.8

20.8

537.6


Category: Lan Cable
