UTP Cat3 25 Ports Voice Patch Panel

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 10,000,000pcs / month
Payment Terms: L/C, T/T, WU Packing: Paper Box or According...
Min. Order: 100 Piece/Pieces Delivery Date: About 20 days.
Means of Transport: Ocean, Air, Land

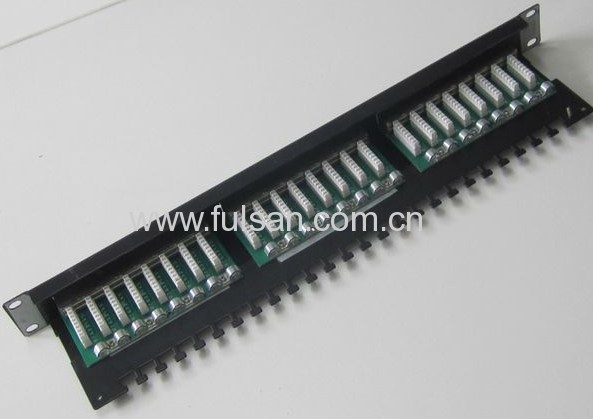

25 port RJ11 cat3 voice telephone patch panel / 25 Ports Voice Patch Panel (6P4C)

1. Rj11 patch panel
2. Meet TIA/EIA-586A and TIA/EIA 586-B
3.1U 19" racked
4.25, 50 ports available
5. OEM. ODM availabl

Product range:
Patch Panel, Patch Cord, Pcb Jack, Keystone Jack, Coupler, Surface Mount Box, Face Plate, IDC Termination Block, Fibre Optic

Specifications
CAT3 voice 25 ports and 50 ports patch panel.
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 90 Degree
Termination: 110 IDC Type

Electrical:
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" to 50 u" Gold plating on contact area

25ports cat3 STP patch

Product description
The back of the patch panel is fitted with cable manager for convenience of cable management
1)Highly resistance and inflaming retarding material, Grade UL94-0
2)Connection strap to adopt gold plate, alloy of Cu and Be, IDC to use the alloy of Cu and P
3) Firm and easy installation reducing the installation and operation cost.
4) Transmission stability.
5)Meet or exceed the current T568A and T568B standard

Mechanical property

Times of repetitive use: ≥ 800
Termipoint life≥ 200
Insulation diameter0.7mm-1.4mm(1.6mm)
Temperature interval-40° C-70° C(storing)
-10° C-60° C(installation)
-10° C-60° C(working)

Application standard:
ISO/IEC11801: 2002
IEC 60603-7-4(edition: 1.02003-01-10)
IEC 60603-7-2(edition: 1.02003-01-10)
EIA/TIA568B. 2-1(2002de-embedded)

Housing 1. cold rolled steel
2. ABS
PCB 1. FR4 1.6mm(0.04") thickness. 2. 6 layers.
Contact 1.  PC Ul94V-0.
2.  Phosphor bronze :  0.45mm(0.018") Diameter.
3.  Gold plating :  3 U"/0.0762um to 50 U"/1.27um.
Electrical 1. According to UL 1863.
2. Current rating: 1.5 Amp Max.
3. Voltage rating: 150 Volts.
4. Contact resistance: 20 m-ohm.
5. Insulation Resistance: 500M-ohm.
6. Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min.
Standard 1.Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
2.Meet TIA/EIA TSB-40.
3.Meet ISO/IEC Generic Cabling Standard 11801
4.Meet CENELEC Generic Cabling Standard EN50173
Performance Pass FLUKE test

Category: Patch Panel
