Lan Cable (cat7)
Fulsan
854442
100m, 300m, 305m, 500m
UL/CE/RoHS/ISO Approved UTP CAT6 4X2X23 AWG Cable
UTP CAT6 LAN CABLE
LAN CABLE UTP CAT6
UTP CAT6 Cable
1)Product Description

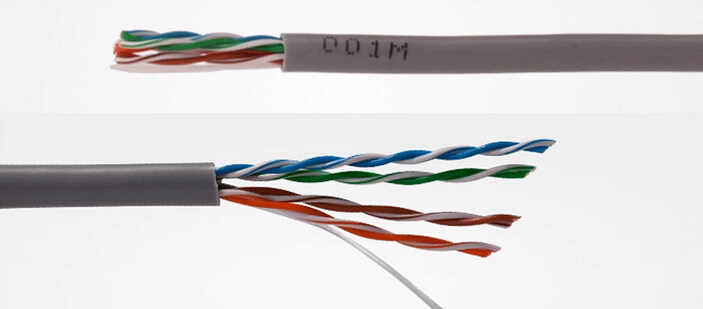

4PX(0.57mm Copper/1.00mm PE) + Separator + Ripcord + 6.30mm PVC
Rated temperature: 60, 75
Bare solid of stranded copper conductor
Colour-coded PE insulation
Rip cord(optional)
PVC or LSOH jacket
Flammadbility Grade: CMX, CM, CMR
Standard: UL444, TIA/ETA568B
2) Characteristics
Impedance: 100+/-15 Ohms
Velocity of Propagation: 65%
SRL: >=20dB (1 to 200 MHz)
>=15dB (200to 550 MHz)
3) Attenuation 20(dB/100M)
1MHz 1.9 dB/100m
4MHz 3.7 dB/100m
8MHz 5.3 dB/100m
10MHz 5.9 dB/100m
16MHz 7.5 dB/100m
20MHz 8.4 dB/100m
25MHz 9.5 dB/100m
31.25MHz 10.6 dB/100m
62.5MHz 15.4 dB/100m
100MHz 19.8 dB/100m
155MHz 25.1 dB/100m
200MHz 29.0 dB/100m
250MHz 32.8 dB/100m
300MHz 36.4 dB/100m
350MHz 39.8 dB/100m
400MHz 43.0 dB/100m
450MHz 46.3 dB/100m
500MHz 48.9 dB/100m
550MHz 51.8 dB/100m
4)Application:
10 Base-T
100 Base-T4
100 Base-TX
100VG-AnyLAN
1000Base-TATM
Structure:
Bare copper, PE insulation, FR PVC/LSOH PVC RoHS jacket
Standards:
ISO/IEC11801, ANSI/TIA/EIA-568B,
Application:
Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP-PMD Audio, integrated service digital network(ISDN), ATM 155Mbps, 1Gmbps TPDDI, Fast Ether-net etc
Usage: Network cabling
Certificate: UL, CE, CCC
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
| Construction | |
| Center Conductor | 0.57mm+ 0.01mm Solid Copper/Copper Clad AL (CCA)/Copper clad steel(CCS) |
| Dielectric | 1.02 + 0.05mm PE |
| cross slot | PE |
| Jacket | 6.1 + 0. 1 mm PVC /LSZH |
| Jacket Color | Black/White or per customers' request |
| Dielectric strength | 2.5KV dc-2seconds |
| Conductor resistance | Max 7.0 ohm/100M at 20°C |
| Max. ring resistance | 16.8 ohm/100M at 20°C |
| Max. mutual capacitance | 560 pf/100M |
| Max. capacity unbalance | 330 pf/100M |
| Standard impedance | 100±15 ohm between 1Mhz and 100Mhz |
| Minimum bending radius | 60 mm |
| Working temperatures | -20 ~ 60°C |
| Fluke Test on DTX1800 ( USA ) | 100% pass 90m Fluke Link Test |
| Frequency (Mhz) | RL | ATT | NEXT | PS. | ELFEXT | PS-ELFEXT |
| (dB) | (dB/100) | (dB) | NEXT | (dB) | (dB) | |
| (dB) | ||||||
| 1 | 20 | 2.04 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 23.01 | 3.81 | 65.3 | 63.3 | 55.8 | 52.8 |
| 8 | 24.52 | 5.35 | 60.8 | 58.8 | 49.7 | 46.7 |
| 10 | 25 | 5.99 | 59.3 | 57.3 | 47.8 | 44.8 |
| 16 | 25 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 25 | 8.52 | 54.8 | 52.8 | 41.8 | 38.8 |
| 25 | 24.32 | 9.75 | 53.3 | 51.3 | 39.8 | 36.8 |
| 31.25 | 23.64 | 10.74 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.3 | 21.54 | 15.48 | 47.7 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.92 | 44.3 | 42.3 | 27.8 | 24.8 |
