| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB | Production Capacity: | 10,000,000PCS/Month |
| Payment Terms: | L/C, T/T, WU | Packing: | Clamshell packing or... |
| Min. Order: | 500 Piece/Pieces | Delivery Date: | About 30 days |
| Means of Transport: | Ocean, Air, Land | ||
Product Description

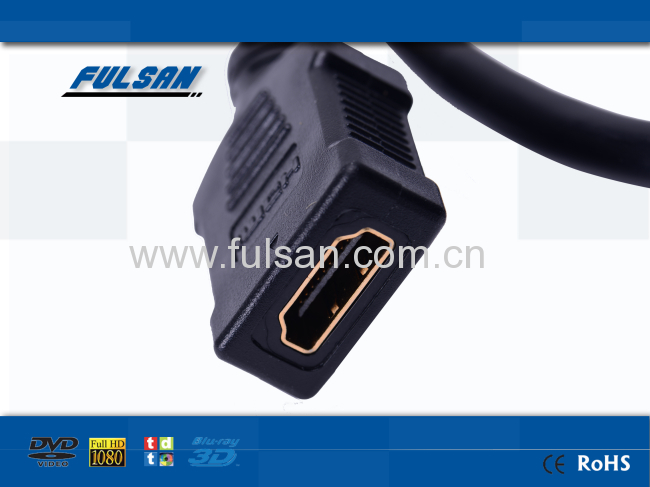

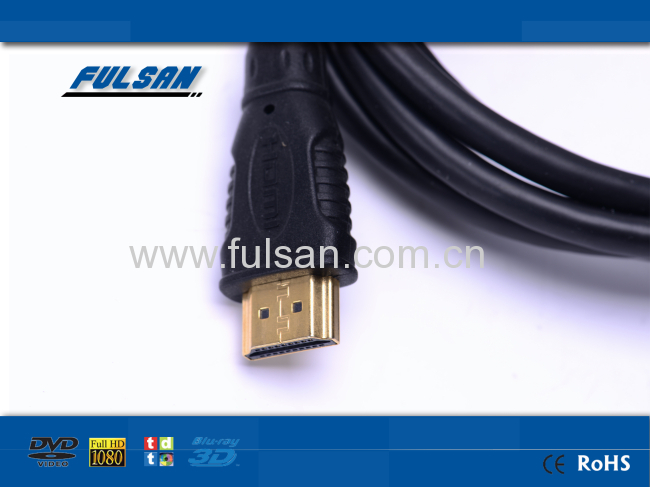

1. HDMI A Type MALE TO A Type FEMALE.
2. Optional gold and nickel plating.
3. Suitable for 28AWG and 30AWG wire gauge.
4. HDMI supported uncompressed all-digital audio/video signal interface.
5. Pass 1080P and HDMI ATC test.
6. Meet the HDMI 1.4V & 2.0V: High speed HDMI cable.
HDMI to HDMI Cable((HDMI 1.4 Cable, 1080P, 3D, Ethernet)
2 X HDMI 19-pin, male to female connectors, version 1.4 & 2.0
Gold plated connectors
With nylon protection layer protect cable from abrasion
Digital transfers at rates up to 10.2Gbps
High purity oxygen free copper conductor
All materials conform to RoHS standard of Europe
Features:
A premium quality V1.4 & V2.0 HDMI to HDMI cable is suitable for use in HDTV, home theater, DVD player, projector, PS3, xBox360, and other HDMI devices
24K gold plated connector resists corrosion and ensures an optimum connection for maximum signal transfer
High pure oxygen free copper conductor for maximum conductivity and reliability
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 10.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ /10ms
Insulation resistance: 10MΩ Minimum
Contact resistance: 2Ω Maximum
Working temperature: -25 to 80 degree Celsius
| Item | High Speed HDMI cable with ethernet |
| Connector | Full 19pin HDMI port 24k gold plated |
| Connector type | Type AM to Type AF |
| Plug mould | PVC injection mould, bi-color mould, metal shell mould |
| Gender | Male |
| conductor | Full oxygen-free pure copper |
| Wire gauge | AWG24, AWG26, AWG28, AWG30 |
| Cable jacket | PVC |
| Support | 1080P, 3D, ethernet, 4K, audio return channel |
| Application | HDTV, DVD player, set top box, xbox360, ps3, satellite, home studio^ |
| Packing | 1. Polybag, blister packaging etc |
| 2.According to customers. |
