| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Payment Terms: | L/C, T/T | Production Capacity: | 1000000/month |
| Min. Order: | 1000 pcs | Packing: | According to client's... |
| Means of Transport: | Ocean | Delivery Date: | 30days |
Specifications
Conductor: OFC-OFC,CCA,CCS Tinned OFC-Tinned OFC Tinned CCA-Tinned CCA High Quality,...
Formation:

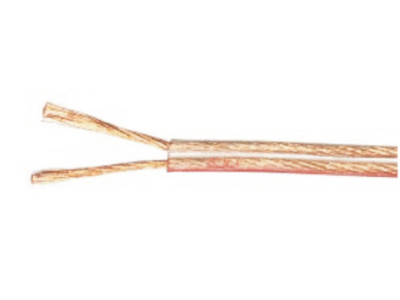

The central part consists of 1 to 4 conductors depending on requirements each of which is composed of bare of tinned twisted copper wires and each of the conductors with PVC insulation layer, and Aluminum foil if required. If the shield is needed, it will be enveloped. The outer side is the transparent protective cover of PVC (Red of Black). This type of cable is applicable to acoustic equipment.
ROHS, Speaker cable, transparent speaker cable, black and red speaker cable, gold and silver speaker cable, Copper or CCA conductor Speaker cable,speaker wire
Red and black cable,white and black speaker wire
CCA or CCS condutor
100m/spool.
Packing Detail:
According to customers' requriements ! It can be packed in coils, plastic reels and wooden drum and so on!
| THE STRUCTURE LIST OF COLORED AUDIO & VIDEO CABLE | ||||
| SERIAL No. | DESCRIPTION AREA (m m2) | SPECIFICATION | OUTER Φ mm | WEIGHT (Kg/Km) |
| V-001 | 0.24 | 2*30/0.10 | 1.6*3.3 | 9 |
| V-002 | 0.4 | 2*50/0.10 | 1.8*3.6 | 13 |
| V-003 | 0.5 | 2*64/0.10 | 1.9*3.8 | 15 |
| V-004 | 0.6 | 2*80/0.10 | 2.1*4.3 | 19 |
| V-005 | 0.75 | 2*96/0.10 | 2.2*4.5 | 22 |
| V-006 | 0.8 | 2*100/0.10 | 2.3*4.5 | 22 |
| V-007 | 1 | 2*7*18/0.10 | 2.6*5.1 | 28 |
| V-008 | 1.5 | 2*7*27/0.10 | 2.9*5.8 | 38 |
| V-009 | 2 | 2*7*36/0.10 | 3.3*6.5 | 50 |
| V-010 | 2.5 | 2*7*46/0.10 | 3.5*7.1 | 61 |
| V-011 | 4 | 2*7*72/0.10 | 4.1*8.3 | 90 |
| V-012 | 6 | 2*7*110/0.10 | 5.0*10.1 | 135 |
| V-013 | 0.4 | 2*13/0.20 | 1.9*3.8 | 14 |
| V-014 | 0.5 | 2*16/0.20 | 2.0*4.0 | 16 |
| V-015 | 0.6 | 2*19/0.20 | 2.1*4.2 | 18 |
| V-016 | 0.75 | 2*24/0.20 | 2.2*4.5 | 22 |
| V-017 | 0.8 | 2*26/0.20 | 2.3*4.5 | 23 |
| V-018 | 1 | 2*32/0.20 | 2.4*4.8 | 27 |
| V-019 | 2 | 2*48/0.20 | 2.7*5.4 | 38 |
| V-020 | 2 | 2*64/0.20 | 2.9*5.9 | 48 |
| V-021 | 3 | 2*7*11/0.20 | 3.5*6.9 | 59 |
| V-022 | 4 | 2*7*18/0.20 | 4.1*8.2 | 90 |
| V-023 | 6 | 2*7*27/0.20 | 5.0*10.0 | 133 |
| V-024 | 20 | 2*41/0.12 | 1.9*3.9 | 16 |
| V-025 | 18 | 2*65/0.12 | 2.3*4.6 | 23 |
| V-026 | 16 | 2*7*15/0.12 | 2.8*5.6 | 15 |
| V-027 | 14 | 2*7*23/0.12 | 3.3*6.6 | 20 |
| V-028 | 12 | 2*7*37/0.12 | 3.9*7.7 | 26 |
| V-029 | 10 | 2*7*59/0.12 | 4.8*9.5 | 39 |
| V-030 | 8 | 2*7*95/0.12 | 5.7*11.4 | 182 |
Category: Speaker Cable
