|Payment & Shipping Terms||Supply Capacity|
|Unit Price:||0.8 USD||Production Capacity:||10,000,000PCS/Month|
|Trade Term:||FOB||Packing:||Clamshell packing or...|
|Payment Terms:||L/C, T/T, WU||Delivery Date:||About 30 days|
|Min. Order:||500 Piece/Pieces|
|Means of Transport:||Ocean, Air, Land|

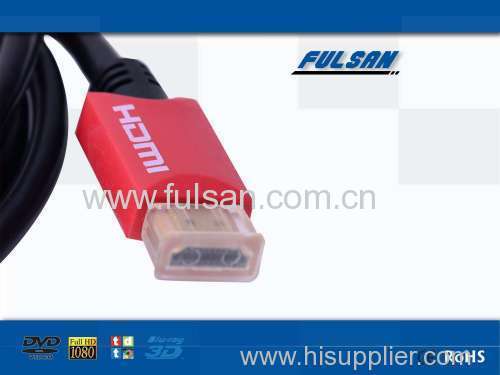

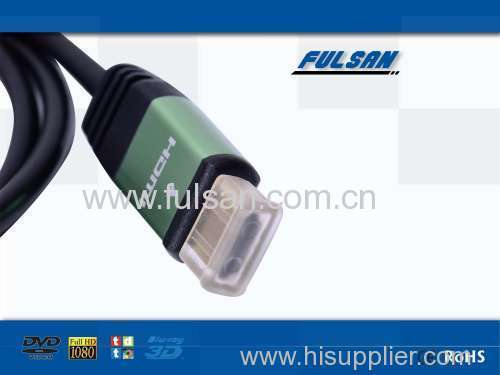

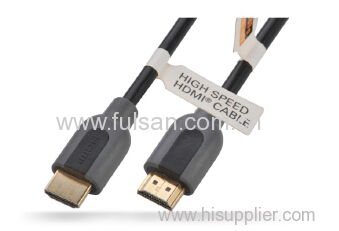

V1.4 HDMI cable high speed with Ethernet
19-pin male to male
Metal shell with black braiding
Inside conductor of cable: pure oxgen-free copper
Connector: 24K gold-plated
Cable compatible: 42awg,38awg,34awg,30AWG, 28AWG, 26AWG, and 24AWG
Length: available from 0.5 to 20m
Compatible with HDMI 1.2a, 1.3b, 1.3c,1.4, HDCP, and FCC,CE&RoHS ,REACH
Supports full 1,080p,1440P,1600P ,2160P
Supports 3D,4KX2K,ARC(Audio Return Channel)
Festures and structure of HDMI cable:
Center conductor :high quality digital signal delivered by oxygn-free copper
Insulation:Using foamed PE as the insulation,ensure image quality and transmit image signal with stability.
Inner shield:100% Aluminum/Mylar foil shield,prevent high frequency noises and interference
Outer shield:95% copper braid shield,prevents most low frenquency noises and interference.
HDMI cable is suitable for HDTV,home themter,DVD player,projector,PS3,XBOX 360 and other HDMI devices.
High density triple shielding for maximum rejection of EMI and RFI
Transfer speed of 10.5Gbps.
100% open and short test
Voltage: 300V DC, 5MΩ /10ms
Insulation resistance: 10MΩ Minimum
Contact resistance: 2Ω Maximum
Working temperature: -25 to 80 degree Celsius
Item High Speed HDMI cable with ethernet Connector Full 19pin HDMI port 24k gold plated Connector type Type A Plug mould PVC injection mould, bi-color mould, metal shell mould Gender Male conductor Full oxygen-free pure copper Wire gauge AWG24, AWG26, AWG28, AWG30 Cable jacket PVC Support 1080P, 3D, ethernet, 4K, audio return channel Application HDTV, DVD player, set top box, xbox360, ps3, satellite, home studio^ Packing 1. Polybag, blister packaging etc 2.According to customers.
Category: HDMI Cable
